Marine Reduction Gear - Dong-I Reduction gears

Marine Reduction Gear - Model: HL

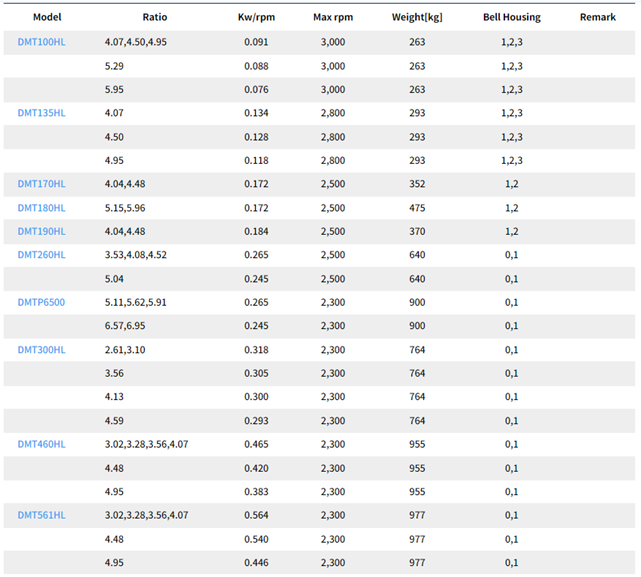

See all models and versions here

Standard supply

– Mechanical control valve

– Cable bracket/clamp parts.

– Oil cooler/cover

– Companion flange/Reamer bolts

– Bell housing(Selection)

– CENTA Flexible coupling


– Marine reduction gearbox with hydraulic clutch.

– Suitable for twin engines with the same reduction ratio as forward/reverse.

– Design and strict quality management according to ISO9001 standards.

– Use of seawater resistant castings.

– Quiet operation with precise gearing.

– Tapered roller bearing application considering maximum thrust.

– Compact design, minimal appearance in its class.

– Permanently available oil filter(metal) applied.

– GO HOME(emergency bolt application) function.


– Electric control valve(12V, 24V optional)

– Mechanical trolling valve

– Mounting brackets(Flat type, Customized)

– Class
